When purchasing Teslong or any other brand from eGoods365.com store, you can be sure that (a) you are purchasing from US based company with the most responsive and friendly customer service; (b) an authentic, not a counterfeit and not a refurbished product.

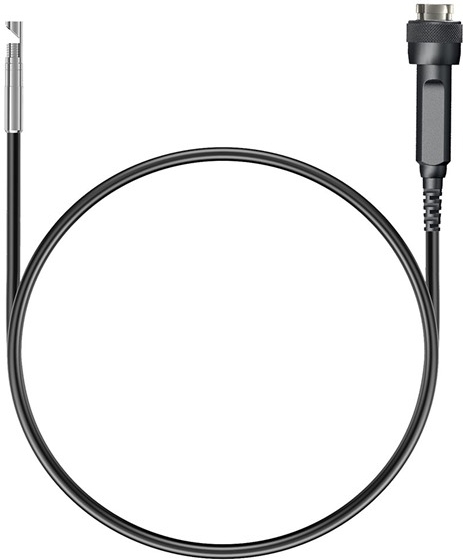

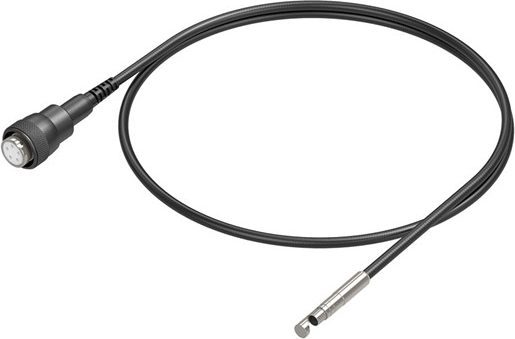

Technical Specs


Model Number: NTG100

Probe Type: Flexible steel fiber probe

Diameter: 0.197 in (5.0 mm)

Probe Length: 45 in (115 cm)

Data Cable Length: 60 in (150 cm)

Megapixel: 1.0 Megapixel

Resolution: 1280x720 pixels

Viewing Angle: 70°


Depth of Field of the camera WITHOUT side-view mirror


1.18 in to 3.94 in (30 mm to 100 mm)


Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror:


With lock ring on: 0 in to 0.28 in (0 mm to 7 mm)

Without lock ring: 0 in to 0.39 in (0 mm to 10 mm)


Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror:


With lock ring on: 0 in to 0.08 in (0 mm to 2mm)

Without lock ring: 0 in to 0.16 in (0 mm to 4 mm)


Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror:


With lock ring on: 0 in to 0.08 in (0 mm to 2 mm)

Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm)


Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror:


With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm)

Without lock ring: 0 in to 0.12 in (0 mm to 3 mm)


Caliber (depends on the size of the side-view mirror you use):


0.22 in (5 mm) Caliber and larger

0.28 in (7 mm) Caliber and larger

0.33 in (8.3 mm) Caliber and larger

0.47 in (12 mm) Caliber and larger

LED Light: 6 Adjustable High-intensity LEDs

Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529


What is in the Package?


Borescope

3x 0.2 in (5 mm) Side-view Mirrors

Aviation to USB-A Connector

USB-C Adaptor

Instructions and Manuals

User Manual

Safety Manual
